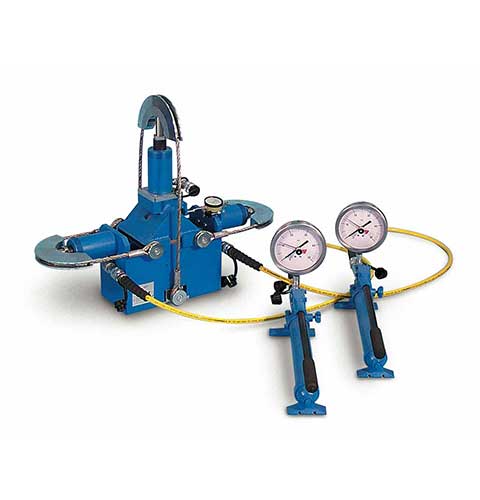

Rock Shear Box Apparatus
- Model
- 77-1040
- Category
- Concrete
- Solutions
- Materials Testing and Laboratory Equipment
Used to determine the strength and slope stability of rock size max 115x125 mm or cores max. dia. 102 mm, both in the field and in the laboratory. Complete with two horizontal rams for shear in two directions, vertical loading ram, two bourdon tube load gauges dia. 150 mm with quick release couplings, calibrated 50 kN x 1 kN division, two hand pumps with hydraulic connections and dial gauge 25x0.01 mm.
Overview
Used to determine the strength and slope stability of rock size max 115x125 mm or cores max. dia. 102 mm, both in the field and in the laboratory. Complete with two horizontal rams for shear in two directions, vertical loading ram, two bourdon tube load gauges dia. 150 mm with quick release couplings, calibrated 50 kN x 1 kN division, two hand pumps with hydraulic connections and dial gauge 25x0.01 mm.
Applications: Soil classification and compaction · Concrete compression and flexural testing · Cement and aggregates testing · Asphalt and bitumen testing · Site quality control
Technical specifications
| Dimensions: | 600 x 250 x 460 mm |
|---|---|
| Weight : | 46 kg |
