Universal Testing Machine, automatic, 500 kN tension / 1000 kN compression
- Model
- 36-1415/01
- Category
- Concrete
- Solutions
- Materials Testing and Laboratory Equipment

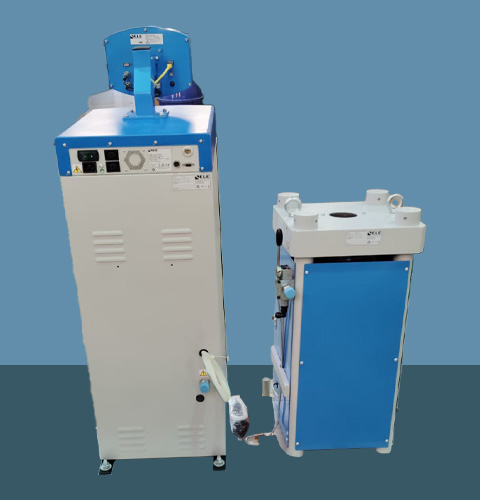

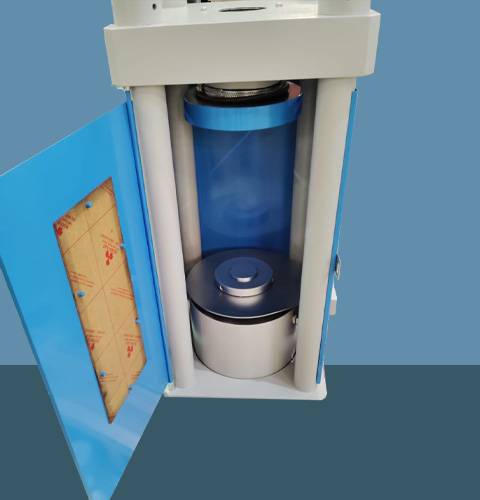

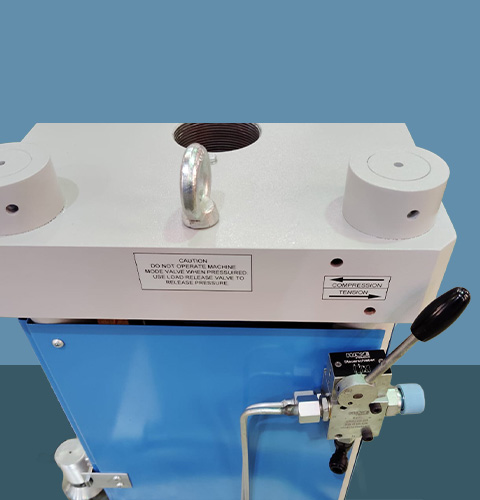

The Automatic Universal Testing Machine has been designed to meet the need for reliable and consistent tensile testing of steel rebars up to 22 mm diameter and compression testing of concrete cube samples up to 150 mm and cylinders up to 160x320 mm. This lightweight low cost and highly accurate machine is suitable for on-site testing and educational purposes.It features the complete automatic test cycle with a closed loop digital readout. Once the specimen parameters have been introduced, it is sufficient to press the START button to complete the test. The test machine consist of three main parts: Frame, power pack and data acquisition & control system. On the measuring system, a pressure transducer is used for load measurements and a Linear Potentiometric Displacement Transducer is used for strain measurements. Each part has been designed to manufacture machines with a high degree of mechanical stability that complies to BS 1610, ASTM C-39, E4 AASHTO T-22, NF P18-411, DIN 51220 (with suitable platen set) standards.
Overview
The Automatic Universal Testing Machine has been designed to meet the need for reliable and consistent tensile testing of steel rebars up to 22 mm diameter and compression testing of concrete cube samples up to 150 mm and cylinders up to 160x320 mm. This lightweight low cost and highly accurate machine is suitable for on-site testing and educational purposes.It features the complete automatic test cycle with a closed loop digital readout. Once the specimen parameters have been introduced, it is sufficient to press the START button to complete the test. The test machine consist of three main parts: Frame, power pack and data acquisition & control system. On the measuring system, a pressure transducer is used for load measurements and a Linear Potentiometric Displacement Transducer is used for strain measurements. Each part has been designed to manufacture machines with a high degree of mechanical stability that complies to BS 1610, ASTM C-39, E4 AASHTO T-22, NF P18-411, DIN 51220 (with suitable platen set) standards.
Applications: Soil classification and compaction · Concrete compression and flexural testing · Cement and aggregates testing · Asphalt and bitumen testing · Site quality control
Key capabilities
- Frame:
- Software:
- The Automatic Compression and Tensile Testing machine can be controlled (Start, Stop commands) by a computer wi
Technical specifications
| Load capacity in tension (kN) : | 500 |
|---|---|
| Load capacity in compression (kN) : | 1000 |
| Max.vertical clearance with compression test accessory (mm): | 768 |
| Max. distance between grips, excluding piston travel (mm): | 268 |
| Distance between columns (mm): | 305 |
| Max. ram travel (mm): | 100 |
| Resolution digital display (kN-mm) : | 0.01 |
| Load measurement accuracy (starting from the first 10% of load range): | +/-1 % |
| Strain measurement accuracy (mm): | 0.01 |
| Overall dimensions approx. (mm): | 1660 x 800 x 500 |
| Weight (kg): | 535 |
| Power supply : | 220-240 V 50-60 Hz, 1 ph |
