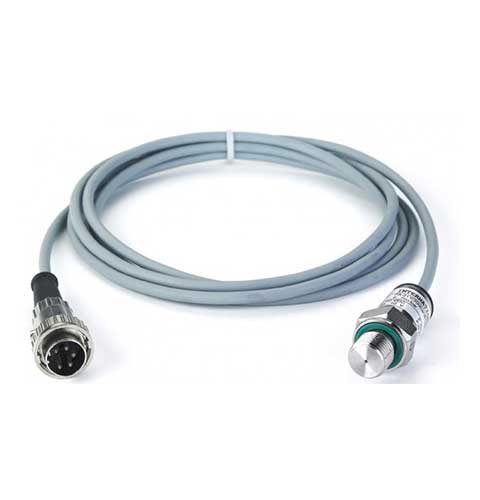

Pressure transducer, 0-70bar, 0.05 to 10v DC Output
- Model
- 6014A0065
- Category
- Concrete
- Solutions
- Materials Testing and Laboratory Equipment
**Not available for sale in the USA**
Overview
**Not available for sale in the USA**
Applications: Soil classification and compaction · Concrete compression and flexural testing · Cement and aggregates testing · Asphalt and bitumen testing · Site quality control
Technical specifications
| Pressure range : | 0-70 bar |
|---|---|
| Output signal : | 0.05, 10V |
| Pressure port : | BSP G1/4" male thread |
| Electrical connector: | Twist lock conn. with 2m cable |
| Linearity : | 0.5% of full scale (LBFSL) |
| Total error band : | 1.0% FS over 0-50 deg.C |
| Supply : | 13-32 VDC |
| Overpressure : | 800 bar |
