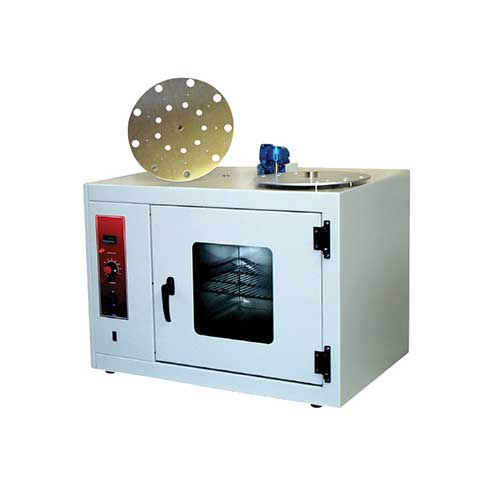

Loss on Heat/Thin-Film Oven 220-240V 50/60 Hz
- Model
- 46-4100/01
- Category
- Asphalt and bitumen
- Solutions
- Materials Testing and Laboratory Equipment
The Thin-Film Oven is used for determining the loss in mass of oil and asphaltic/bituminous compounds when heated with the loss on heating test method or the effect of heat and air on semi-solid asphaltic/bituminous materials with the Thin-Film Oven (TFO) test method. Features: The exterior is constructed from sheet steel finished in an easy clean powder-coated paint.
Overview
The Thin-Film Oven is used for determining the loss in mass of oil and asphaltic/bituminous compounds when heated with the loss on heating test method or the effect of heat and air on semi-solid asphaltic/bituminous materials with the Thin-Film Oven (TFO) test method. Features: The exterior is constructed from sheet steel finished in an easy clean powder-coated paint.
Applications: Soil classification and compaction · Concrete compression and flexural testing · Cement and aggregates testing · Asphalt and bitumen testing · Site quality control
Key capabilities
- Interior chamber is made from Stainless Steel.
- The unit is well insulated and has a double glass door for viewing the test chamber.
- The system is controlled by a microprocessor digital controller and overheat thermostat.
- Calibrated scale and tamper-proof lock.
- Temperature is controlled and pre-set at 163°C +/- 1°C
- Two rotating platforms of 13.5 inches diameter are supplied to perform both the tests. Side mounted controls comprise:
- Microprocessor digital control.
- Independent overheat thermostat.
Technical specifications
| Max Temp (°C): | 163 |
|---|---|
| Dimensions: Internal (HxWxD) : | 380 x 520 x 460 mm |
| Dimensions: External (HxWxD): | 570 x 870 x 630 mm |
| Insulation: | Double wall |
| Internal material: | 304 stainless steel |
| Turntable speed (rpm): | 5.5 |
| Max power (W): | 1500 |
