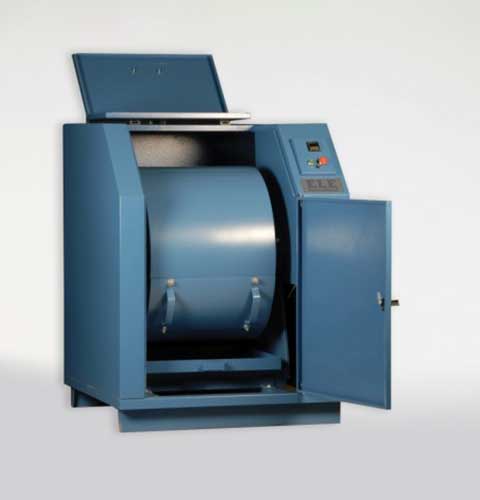

Los Angeles Abrasion Machine with CE Safety Cabinet W/ Microswitches. 220-240V 60Hz 1Ph.
- Model
- 42-5310/06
- Category
- Aggregates
- Solutions
- Materials Testing and Laboratory Equipment
The machine consists of a closed hollow cylindrical steel drum rotating around its horizontal axis on ball bearing units mounted on a sturdy base framework. Also the full enclosure ensures noise is minimized. The drum is driven at a speed of between 30 - 33 rpm via an enclosed belt drive arrangement from an electric motor/gearbox unit situated on the base frame. Inside the drum a full length steel shelf is attached, accessed by a dust-proof opening. The cylinder incorporates a removable internal shelf, one shelf position is provided to meet the requirements of both the ASTM and EN test standards. Controls are located easily on the right-hand side of the machine at convenient operator height. Start and stop push buttons and a subtracting revolution counter allows the user to preset the number of revolutions before an automatic stop.
Overview
The machine consists of a closed hollow cylindrical steel drum rotating around its horizontal axis on ball bearing units mounted on a sturdy base framework. Also the full enclosure ensures noise is minimized. The drum is driven at a speed of between 30 - 33 rpm via an enclosed belt drive arrangement from an electric motor/gearbox unit situated on the base frame. Inside the drum a full length steel shelf is attached, accessed by a dust-proof opening. The cylinder incorporates a removable internal shelf, one shelf position is provided to meet the requirements of both the ASTM and EN test standards. Controls are located easily on the right-hand side of the machine at convenient operator height. Start and stop push buttons and a subtracting revolution counter allows the user to preset the number of revolutions before an automatic stop.
Applications: Soil classification and compaction · Concrete compression and flexural testing · Cement and aggregates testing · Asphalt and bitumen testing · Site quality control
Technical specifications
| Description: | Los Angeles Abrasion Machine with CE Safety Cabinet 220 - 240 V 60Hz |
|---|---|
| Power Supply: | 220 - 240 V AC, 60 Hz, 1 ph |
| EN 1097-2: | Yes |
| ASTM C131: | Yes |
| ASTM C535: | Yes |
| NF P18-573: | Yes |
