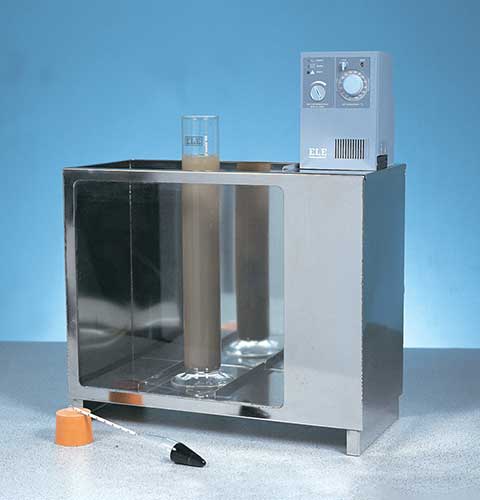

Constant Temperature Bath 5 to 99.9 Deg.C X 0.1 Deg.C with Led Display and False Base Support.
- Model
- 24-4865/01
- Category
- Aggregates
- Solutions
- Materials Testing and Laboratory Equipment
- Specially designed for Sedimentation of Testing of Soils - Stainless steel construction with toughened glass front for viewing samples - Must hold six sedimentation cylinders
Overview
- Specially designed for Sedimentation of Testing of Soils - Stainless steel construction with toughened glass front for viewing samples - Must hold six sedimentation cylinders
Applications: Soil classification and compaction · Concrete compression and flexural testing · Cement and aggregates testing · Asphalt and bitumen testing · Site quality control
Key capabilities
- - Complies to: BS 1377-2 EN DD ENV1997-2 ASTM D422 AASHTO T88
Technical specifications
| Dimensions (l x w x h): | 535 x 210 x 610 mm external |
|---|---|
| Capacity: | Holds up to 6 sedimentation cylinders |
| Construction: | Stainless steel with toughened glass front |
| Temperature Control: | Heater/thermostat/circulation with digital controller unit 5 to 99.9 Deg.C X 0.1 Deg.C |
| Power: | 1500 watts |
| Weight kg: | 12 |
Solutions
Materials Testing and Laboratory Equipment
Laboratory and field equipment for testing soil, concrete, cement, aggregates and asphalt.
Related products

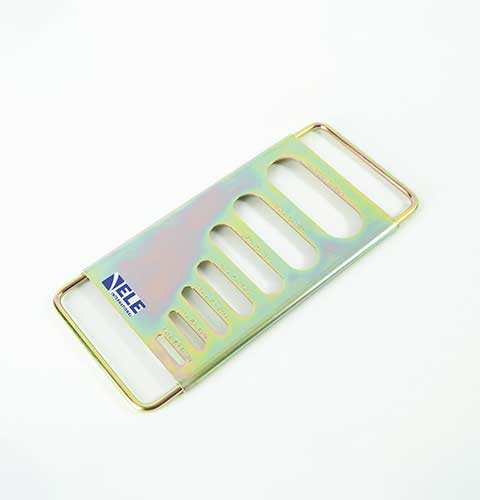

Flakiness Gauge.
Constructed of heavy gauge sheet steel to the dimensions specified in BS 812.

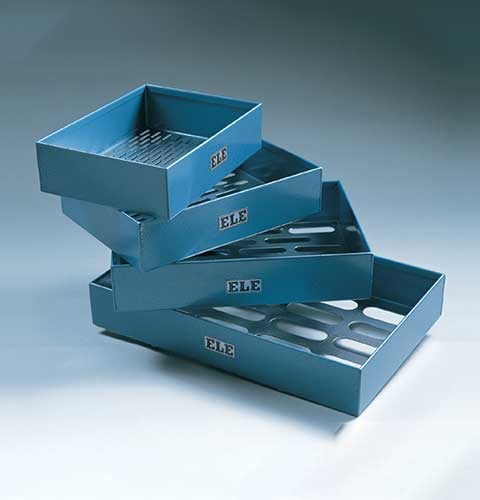

Set of Flakiness Sieves
Comprising 1 each of, 4.9 mm, 7.2 mm, 10.2 mm, 14.4 mm, 19.7 mm, 26.3 mm and 33.9 mm Standard BS 813

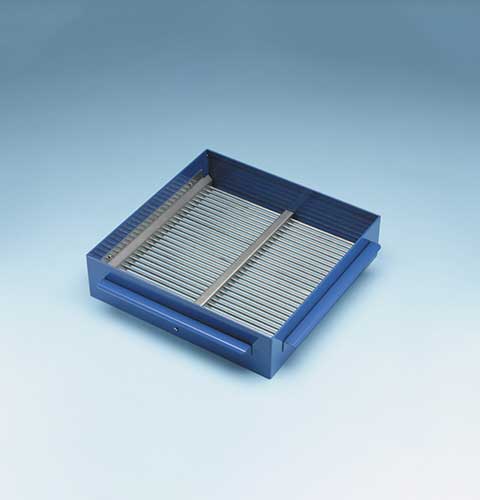

Grid Sieve 10mm Slot Width for EN Aggregate Flakiness Test.
