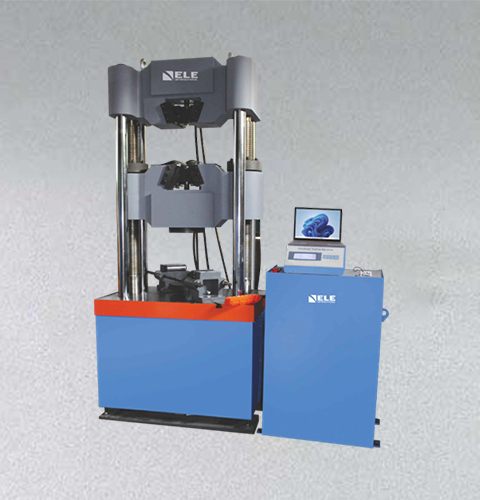

Hydraulic Type Universal Testing Machine 2000 kN
- Model
- 36-2421/05
- Category
- Concrete
- Solutions
- Materials Testing and Laboratory Equipment
36-2421/05 is designed to serve the requirements of laboratories, research and development, quality control, manufacturers and educational fields. Plastic, textiles, fabric, wire, cord, rubber, wood etc. are ideal specimens for the 36-2421/05. Test methods such as tensile, compression, bending, peel, shear, puncture etc. are available on this machine. Features: Four to six column hydraulic type UTM
Overview
36-2421/05 is designed to serve the requirements of laboratories, research and development, quality control, manufacturers and educational fields. Plastic, textiles, fabric, wire, cord, rubber, wood etc. are ideal specimens for the 36-2421/05. Test methods such as tensile, compression, bending, peel, shear, puncture etc. are available on this machine. Features: Four to six column hydraulic type UTM
Applications: Soil classification and compaction · Concrete compression and flexural testing · Cement and aggregates testing · Asphalt and bitumen testing · Site quality control
Key capabilities
- High precision load cell, class 1 and class 0.5 calibration
- 1/50,000 force resolution
- 0.5~60mm/min test speed (upgradable option)
- User friendly remote for chuck control
- Overload protection limit sensor
- Emergency power cut off button
- Interchangeable tensile insert grip system
- Software features:
Technical specifications
| Frame Capacity: | 2000 kN |
|---|---|
| Max tension range : | 2000 kN |
| Force resolution : | 1/50,000 |
| Stroke resolution : | 0.001 mm |
| Load range : | 2 steps (200/20 tonf) |
| Colum style: | 4 post |
| Controller : | LCD Digital Indicator |
| Tensile - Max tensile distance : | 1200 mm (including grips) |
| Tensile - Grip for round bar : | Ø10 ~ Ø20, Ø20 ~ Ø35, Ø35 ~ Ø50,Ø50 ~ Ø65 Length 110mm (1 set incl. + 1 set opt.) |
| Tensile - Grip for plate bar : | 10~35, 35~70 / Wide : 90, Length 160mm (1 set incl. + 1 set opt.) |
| Tensile - Grip for length : | 160mm Length of the grips for standard samples (225mm option for Stranded wire) |
| Compression - Test stroke : | 830 mm |
| Compression - Dia plate : | Ø180 mm |
| Bending test - Bending distance: | 50 ~ 500 mm |
| Bending test - Punch tips radius (Ò): | 25 |
| Bending test - Punch width : | 150 |
| Bending test - Roller diameter : | Ø70 |
| Table size : | 1080 x 750 mm |
| Column to column : | 740 mm |
| Max ram stroke : | 200 mm |
| Crosshead speed : | 400 mm/min |
| Cross head motor : | Gearedmotor 1/30, 0.75kW |
| Test speed : | 0.5 ~ 60mm/min (S/W Control Type) |
| Hydraulic pump capacity : | 7 cc |
| Total weight : | 7500 kg |
| Loading unit ( w x d x h) : | 1400 ×850 × 3300 mm |
| Hydraulic unit ( w x d x h) : | 550 × 500× 550 mm |
| Computer system unit ( w x d x h) : | 600 x 600 x 1700 mm |
