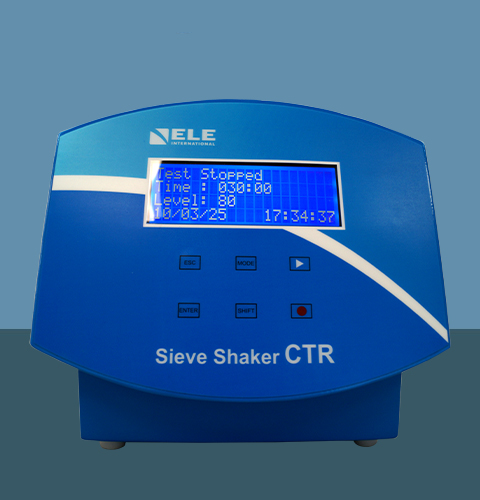

ELE Sieve Shaker CTR
- Model
- 80-0200/01
- Category
- Aggregates
- Solutions
- Materials Testing and Laboratory Equipment
Overview A versatile and cost-efficient solution, the ELE Sieve Shaker with keypad control is engineered for general-purpose use across civil engineering, construction materials, and industrial labs. It delivers the same three-dimensional sieving action using an electromagnetic drive but is controlled via a straightforward keypad console with programmable time and vibration modes. Its rugged, portable design and budget-friendly configuration make it the preferred choice for standard testing environments, particularly in on-site labs, academic setups, or facilities with simplified operational needs.
Overview
Overview A versatile and cost-efficient solution, the ELE Sieve Shaker with keypad control is engineered for general-purpose use across civil engineering, construction materials, and industrial labs. It delivers the same three-dimensional sieving action using an electromagnetic drive but is controlled via a straightforward keypad console with programmable time and vibration modes. Its rugged, portable design and budget-friendly configuration make it the preferred choice for standard testing environments, particularly in on-site labs, academic setups, or facilities with simplified operational needs.
Applications: Soil classification and compaction · Concrete compression and flexural testing · Cement and aggregates testing · Asphalt and bitumen testing · Site quality control
Key capabilities
- Key Features
- Digital keypad console with easy programmable setting
- Triple-motion vibration: vertical, lateral & rotational
- Quiet operation with no mechanical wear
- Test time programmable from 0–999 mins
- Supports up to 10 × 200 mm or 6 × 300 mm sieves
- Compact and suitable for benchtop or mobile use
- A detachable panel for ease of transportation
Technical specifications
| Sieve Capacity: | Up to 10 × 200 mm / 8” sieves with lid & receiver Up to 6 × 300 mm / 12” sieves |
|---|---|
| Control Interface: | Digital keypad console (separate unit) |
| Operation Modes: | Continuous / Intermittent |
| Timer Range: | 0–999 minutes |
| Dimensions: | 380 × 440 × 1085 mm |
| Power Supply: | 220–240 V AC, 50Hz, 1 phase |
