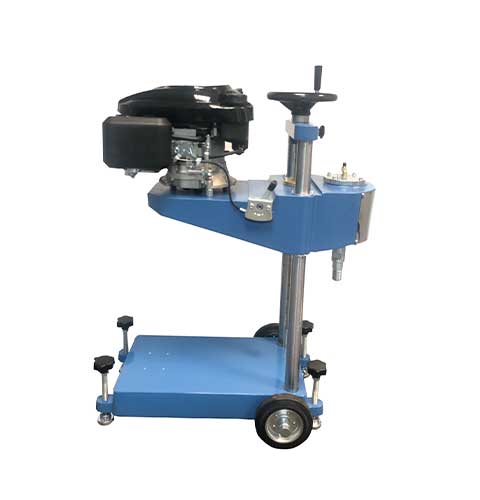

Compact Core Drill
- Model
- 47-6175
- Category
- Concrete
- Solutions
- Materials Testing and Laboratory Equipment
EN 12697-27 Machine is designed to cut cores up to 150 mm diameter from concrete, asphalt and similar hard construction materials. It comprises a vertical support column which carries the drill head/motor assembly. The motor assembly comprises a 6.5 Hp petrol engine, a ball screw mechanism enables close control of the drilling pressure and rapid return when drilling is completed. A water spraying assembly is mounted on the machine. The complete assembly is supplied on a rigid wheel mounted metal base frame with leveling and fixing facility during the operation. Coring bits are available to order separately
Overview
EN 12697-27 Machine is designed to cut cores up to 150 mm diameter from concrete, asphalt and similar hard construction materials. It comprises a vertical support column which carries the drill head/motor assembly. The motor assembly comprises a 6.5 Hp petrol engine, a ball screw mechanism enables close control of the drilling pressure and rapid return when drilling is completed. A water spraying assembly is mounted on the machine. The complete assembly is supplied on a rigid wheel mounted metal base frame with leveling and fixing facility during the operation. Coring bits are available to order separately
Applications: Soil classification and compaction · Concrete compression and flexural testing · Cement and aggregates testing · Asphalt and bitumen testing · Site quality control
Technical specifications
| Dimensions: | 500 x 900 x 1100 mm |
|---|---|
| Weight: | 95 kg |
| Power: | 6.5 Hp |
Downloads
