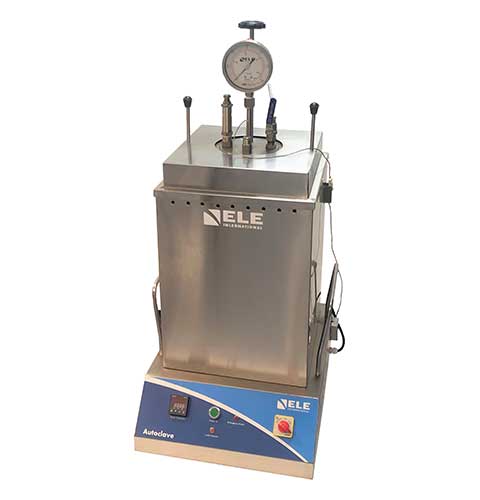

Autoclave
- Model
- 38-3900/01
- Category
- Cement
- Solutions
- Materials Testing and Laboratory Equipment
Standards : ASTM C188, C141 , C151 The Laboratory Cement Autoclave is suitable for conducting accelerated soundness tests on Cement or the Autoclave expansion test. The equipment consists of a Stainless Steel Pressure Vessel with insulated outer shell, fabricated out of high quality Stainless Steel Sheet. The pressure inside the vessel is controlled through a micro processor based PID controller. The equipment is supplied complete with spring loaded safety valve pressure gauge, PID controller with RTD for control of Heater unit. Special Features :
Overview
Standards : ASTM C188, C141 , C151 The Laboratory Cement Autoclave is suitable for conducting accelerated soundness tests on Cement or the Autoclave expansion test. The equipment consists of a Stainless Steel Pressure Vessel with insulated outer shell, fabricated out of high quality Stainless Steel Sheet. The pressure inside the vessel is controlled through a micro processor based PID controller. The equipment is supplied complete with spring loaded safety valve pressure gauge, PID controller with RTD for control of Heater unit. Special Features :
Applications: Soil classification and compaction · Concrete compression and flexural testing · Cement and aggregates testing · Asphalt and bitumen testing · Site quality control
Key capabilities
- Rust proof stainless steel pressure vessel & enclosure
- Microprocessor based PID controller for accurately controlling the temperature hence pressure
- Three fold safety mechanism for the equipment and the operator
- Reliable silicon rubber lid sealing gasket
- Very Compact
- Specifications:
- Working Pressure: 21 ± 1 kg/cm2 at 215° C
- Pressure Vessel: ID 150mm X Depth 500
Technical specifications
