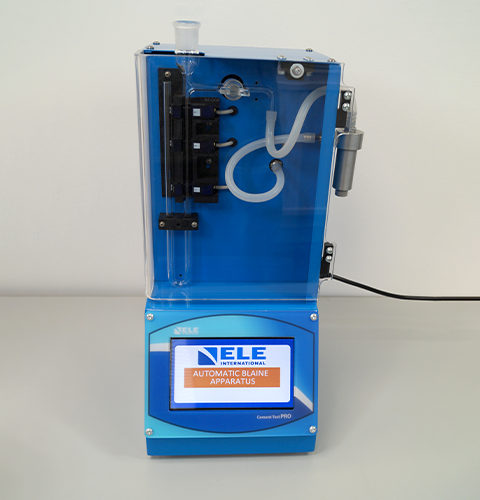

Auto Blaine Apparatus
- Model
- 38-1110/01
- Category
- Cement
- Solutions
- Materials Testing and Laboratory Equipment
The ELE Auto Blaine Apparatus offers a fully automatic solution for determining the fineness of cement and other powdered materials using the air-permeability method. Built with a 7” resistive touchscreen and smart sensing technology, it enables accurate, repeatable, and efficient test cycles with minimal user involvement.
Overview
The ELE Auto Blaine Apparatus offers a fully automatic solution for determining the fineness of cement and other powdered materials using the air-permeability method. Built with a 7” resistive touchscreen and smart sensing technology, it enables accurate, repeatable, and efficient test cycles with minimal user involvement.
Applications: Soil classification and compaction · Concrete compression and flexural testing · Cement and aggregates testing · Asphalt and bitumen testing · Site quality control
Technical specifications
| Power Supply: | 220V, 50Hz, 1 Phase |
|---|---|
| Display: | 7” TFT resistive touchscreen (800×480) |
| Temperature Sensor: | Built-in Pt 100 |
| Sensor Power: | 10-30 VDC |
| Data Output: | USB port with .CSV export |
| Brightness: | 200 Cd/m² typical |
| Operation Modes: | Standalone / PC controlled |
