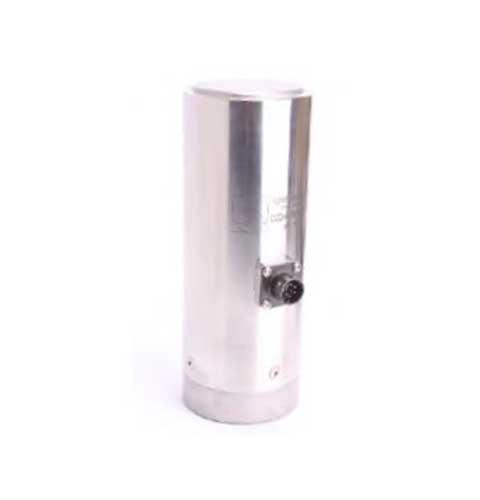

2000 kN Load Calibration Device complete with Handheld Readout Unit & Calibration Certificate ISO376
- Model
- 37-8315
- Category
- Concrete
- Solutions
- Materials Testing and Laboratory Equipment
Complete with Hand Held Readout Unit and UKAS calibration certificate. Capacities 2 tonnes to 1000 tonnes <±0.1% Accuracy
Overview
Complete with Hand Held Readout Unit and UKAS calibration certificate. Capacities 2 tonnes to 1000 tonnes <±0.1% Accuracy
Applications: Soil classification and compaction · Concrete compression and flexural testing · Cement and aggregates testing · Asphalt and bitumen testing · Site quality control
Key capabilities
- Sealed to IP65
- Robust Construction
- Submersible Version Available
- Competitively Priced
Technical specifications
| Capacity : | 200 tonnes |
|---|---|
| Output : | 2.0m V/V (nominal) |
| Total accuracy : | <+/- 0.1% of rated output |
| Environmental protection : | IP65 |
| Electrical connection : | 4m PUR cable |
| Operating temperature range: | -20 to +70 deg C |
| Compensated temperature range : | -10 to +50 deg C |
| Supply voltage : | 10v recommended 15v max |
| Operating mode : | Compression |
Solutions
Materials Testing and Laboratory Equipment
Laboratory and field equipment for testing soil, concrete, cement, aggregates and asphalt.
