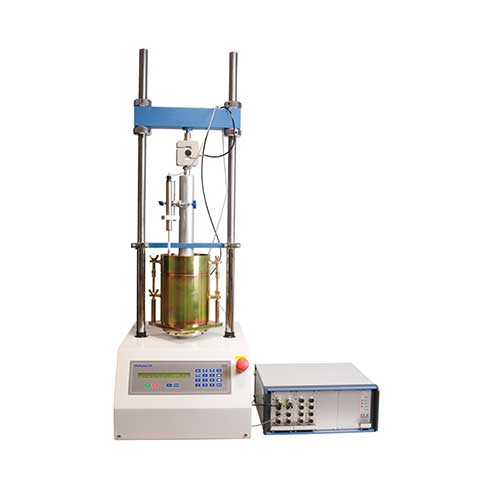

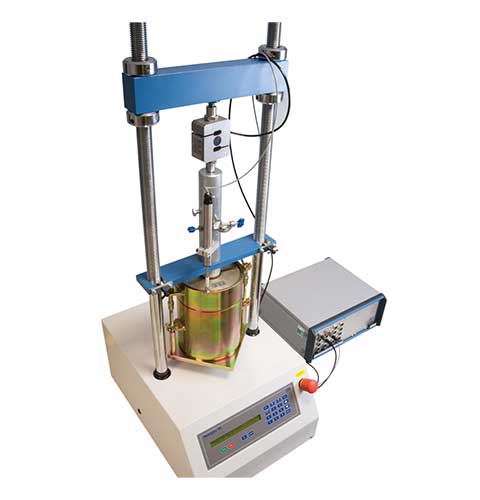

MultiPlex 50 Load Frame
- Model
- 25-3700/01
- Category
- Soil
- Solutions
- Materials Testing and Laboratory Equipment
Compact bench mounting load frame designed for performing laboratory CBR, unconfined compression, Quick Undrained Triaxial and Marshall Stability Tests. Has a variable speed of 0.5 to 50.8mm per minute and features rapid approach of platen. 220-240 V, 50/60 Hz
Overview
Compact bench mounting load frame designed for performing laboratory CBR, unconfined compression, Quick Undrained Triaxial and Marshall Stability Tests. Has a variable speed of 0.5 to 50.8mm per minute and features rapid approach of platen. 220-240 V, 50/60 Hz
Applications: Soil classification and compaction · Concrete compression and flexural testing · Cement and aggregates testing · Asphalt and bitumen testing · Site quality control
Technical specifications
| Dimensions (l x w x h): | 550 x 400 x 1470 mm |
|---|---|
| Max vertical clearance: | 800 mm |
| Horizontal clearance: | 265 mm |
| Platen diameter: | 133 mm |
| Platen travel: | 100 mm |
| Platen speed range: | 0.5 to 50.8 mm/min |
| Rapid approach speed: | 40 mm/min |
| Weight kg: | 100, (shipping 113 kg) |
