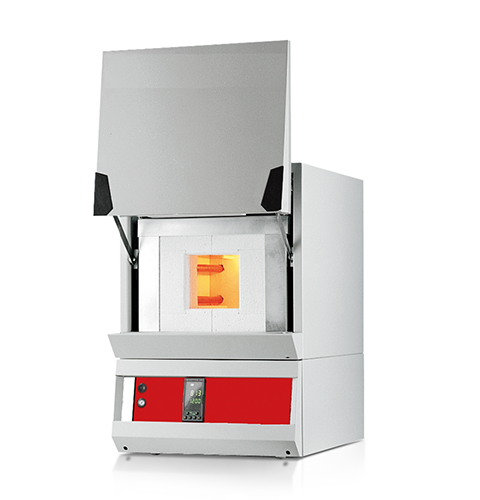

High Temperature Laboratory Furnace 1600°C
- Model
- 83-4180/01
- Category
- General laboratory equipment
- Solutions
- Materials Testing and Laboratory Equipment
Silicon carbide heated high temperature chamber furnace which has a maximum operating temperature of 1600°C. Robust construction and high quality elements provide rapid heating rates and a long reliable working life Features:
Overview
Silicon carbide heated high temperature chamber furnace which has a maximum operating temperature of 1600°C. Robust construction and high quality elements provide rapid heating rates and a long reliable working life Features:
Applications: Soil classification and compaction · Concrete compression and flexural testing · Cement and aggregates testing · Asphalt and bitumen testing · Site quality control
Key capabilities
- 1600°C maximum operating temperature
- Controller, with single ramp to set-point & process timer
- 3 litre chamber volumes
- Soft closing parallel action door
- Silicon carbide heating elements provide long life and are able to withstand the stresses of intermittent operation
- Have a cast alumina hearth
- Low thermal mass insulation for high energy efficiency
Technical specifications
| Max Temp: | 1600°C |
|---|---|
| Volume : | 3 litres |
| Heat up time : | 42 mins |
| Dimensions (Internal) : | 120 x 120 x 205 mm (H x W x D) |
| Dimensions (External): | 655 x 435 x 610 (905 - door open) |
| Configuration : | Bench top |
| Max power : | 4500 W |
| Holding power: | 2300 W |
| Thermocouple type: | R |
| Weight : | 42 kg |
