Guelph Permeameter Supplied Complete with Extension Kit.
- Model
- 25-0650
- Category
- Soil
- Solutions
- Materials Testing and Laboratory Equipment
• Lightweight and portable • Robust construction • Requires only 2.5 litres of water • Results usually within 2 hours The Guelph Permeameter is used to obtain accurate measurements of hydraulic conductivity, soil sorptivity and soil matrix flux potential. These three factors govern how liquids will move through an unsaturated soil profile. Recent significant advances in both the theoretical and practical techniques of measuring soil hydraulic conductivity have been made by the University of Guelph, Canada. This has resulted in the development of the Guelph Permeameter, utilising the Constant Head Well principle.
Overview
• Lightweight and portable • Robust construction • Requires only 2.5 litres of water • Results usually within 2 hours The Guelph Permeameter is used to obtain accurate measurements of hydraulic conductivity, soil sorptivity and soil matrix flux potential. These three factors govern how liquids will move through an unsaturated soil profile. Recent significant advances in both the theoretical and practical techniques of measuring soil hydraulic conductivity have been made by the University of Guelph, Canada. This has resulted in the development of the Guelph Permeameter, utilising the Constant Head Well principle.
Applications: Soil classification and compaction · Concrete compression and flexural testing · Cement and aggregates testing · Asphalt and bitumen testing · Site quality control
Technical specifications
| Cell: | Plated seamless tube 100 mm diameter x 130 mm height |
|---|---|
| Capacity: | 3.18 Litres |
| Base: | Porous plate with three tie rods |
| Top plate: | Machined to accept smaller tubes |
| Net Weight : | 13.6 kg |
| Overal Weight: | 111 kg |

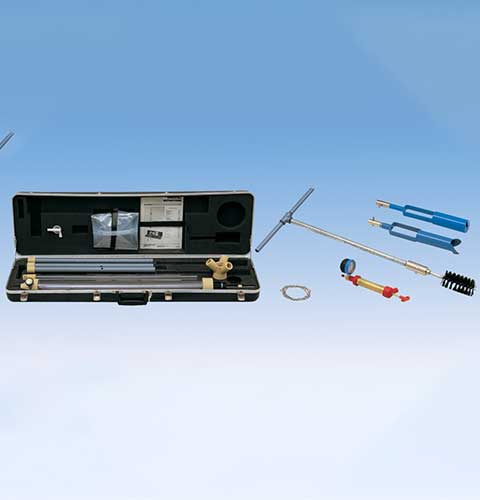

| Permeameter: | High impact polycarbonate, molded elastomers. |

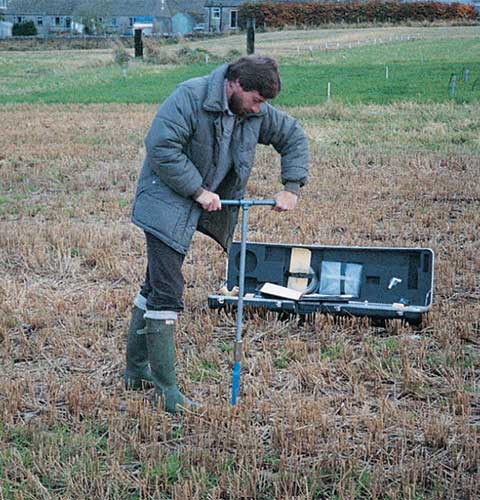

| Auger: | 2” (50.8 mm) diam.; machined steel. |
| Carrying Case: | Die-cut foam for parts storage. |
| Test Time: | 1/2 – 2 hours. |
| Test Depth: | 15 to 75 cm (0.5 to 2.5 ft). |
| Hydraulic Conductivity Range: | 10-4 to 10-8 m/sec (10-2 to 10-6 cm/sec). |
| Weight: | Net 30 lbs. (13 .6 kg). |
