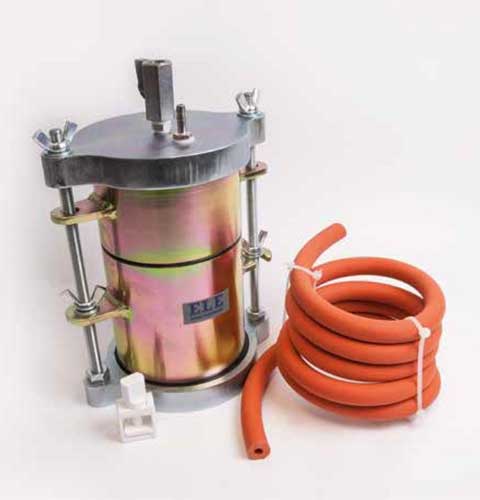

Compaction Permeameter.
- Model
- 25-0607
- Category
- Soil
- Solutions
- Materials Testing and Laboratory Equipment
101.6 mm
Overview
101.6 mm
Applications: Soil classification and compaction · Concrete compression and flexural testing · Cement and aggregates testing · Asphalt and bitumen testing · Site quality control
Technical specifications
| Mould: | Machined seamless steel tubing, plated |
|---|---|
| Capacity: | 101.6 x 116.4 mm (inside dia x h) 1/30 ft3 |
| Collar: | 50.8 mm high, machined |
| Top: | Overflow valve assembly and waterconnection |
| Base: | Cast aluminum, with inlet/outlet fitting |
| Porous stone: | (4") 101.6 x 12.7 mm (diameter x thickness) |
| Weights: | 5.4 kg |
