AUTO Soils Direct Shear (ASD)
- Model
- 25-0600/09
- Category
- Soil
- Solutions
- Materials Testing and Laboratory Equipment

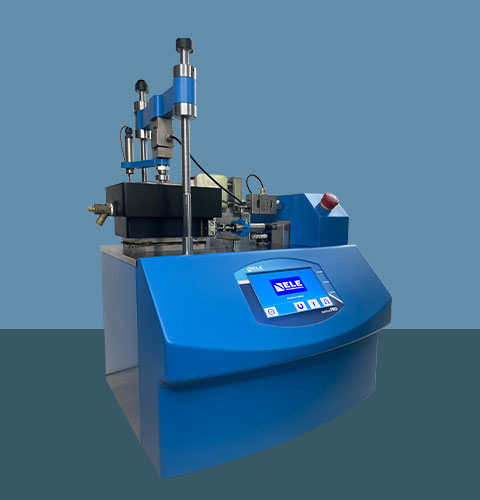

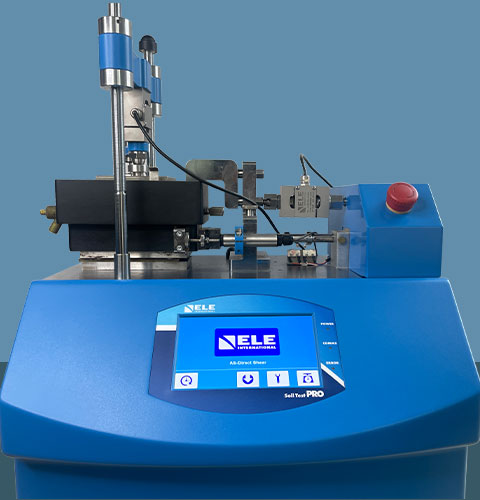

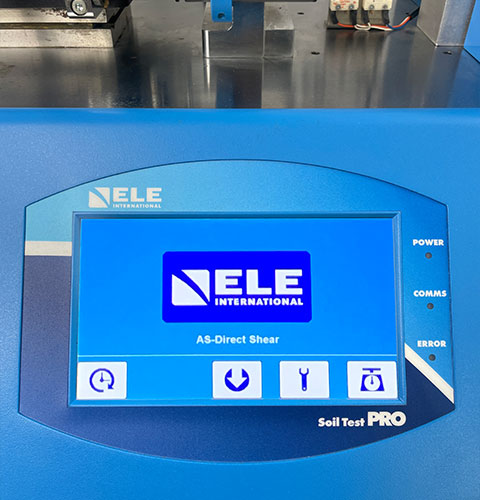

The AUTO Soils Direct Shear (ASD) system is a fully automatic direct and residual shear apparatus designed to increase throughput and improve data quality in busy geotechnical laboratories. It replaces manual weights and frequent operator intervention with precise stepper-motor control across a 15 kN consolidation range and 5 kN shear range, eliminating the need for a compressor and significantly reducing noise in the lab. The ASD manages consolidation and shear stages automatically, with horizontal and vertical displacements measured by high-accuracy LVDTs and stored digitally for analysis and reporting. A 7" waterproof colour touchscreen provides clear setup, logging and graphical views, with user-configurable templates for fast repeat testing.
Overview
The AUTO Soils Direct Shear (ASD) system is a fully automatic direct and residual shear apparatus designed to increase throughput and improve data quality in busy geotechnical laboratories. It replaces manual weights and frequent operator intervention with precise stepper-motor control across a 15 kN consolidation range and 5 kN shear range, eliminating the need for a compressor and significantly reducing noise in the lab. The ASD manages consolidation and shear stages automatically, with horizontal and vertical displacements measured by high-accuracy LVDTs and stored digitally for analysis and reporting. A 7" waterproof colour touchscreen provides clear setup, logging and graphical views, with user-configurable templates for fast repeat testing.
Applications: Soil classification and compaction · Concrete compression and flexural testing · Cement and aggregates testing · Asphalt and bitumen testing · Site quality control
Technical specifications
| Frame capacities: | Consolidation 15 kN, Shear 5 kN |
|---|---|
| Travel: | Consolidation 15 mm, Shear 15 mm (standard), 25 mm with optional accessory |
| Available cell / shear box ranges*: | Consolidation cells (mm): 35, 50, 70, 75, 100, 112.8 (2", 2.416", 2.5", 3", 4"), Shear boxes: 60 mm and 100 mm square; 2.42" and 2.5" circular |
| Maximum sample size: | 100 mm square |
| Piston travel: | Consolidation 26 mm, Shear 25 mm |
| Speeds: | Test speed 10 mm/min, Fast approach 40 mm/min |
| Transducers: | Two linear variable displacement transducers (LVDTs) |
| Control & connectivity: | High-resolution 7" colour touchscreen, Up to 16 ASD / consolidation units per PC via Ethernet |
| Dimensions & weight: | 520 × 450 × 740 mm (W × D × H), Approx. 73 kg, Vertical / horizontal clearance: 270 / 220 mm |
| Power supply: | 90–240 V AC, 50–60 Hz, 1 phase |
| Standards: | BS 1377-7, ISO 17892-10, ASTM D3080 / D3080M, AASHTO T-236 |
