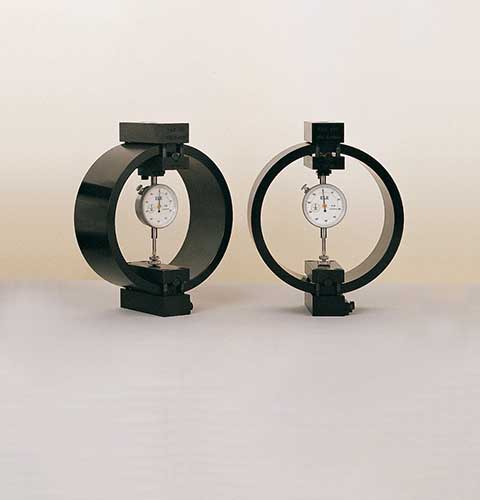

50kN Clamped Boss Load Ring
- Model
- 78-0860
- Category
- General laboratory equipment
- Solutions
- Materials Testing and Laboratory Equipment
Calibrated in compression.
Overview
Calibrated in compression.
Applications: Soil classification and compaction · Concrete compression and flexural testing · Cement and aggregates testing · Asphalt and bitumen testing · Site quality control
Technical specifications
| Capacity - kN: | 50 |
|---|---|
| Capacity - kgf: | 5000 |
| Capacity - Ibf: | 11,200 |
| Typical Design Sensitivity - kN/div: | 45.5 |
| Typical Design Sensitivity - Kgf/div: | 4.54 |
| Typical Design Sensitivity - Ibf/div: | 10.18 |
| Overall Height: | 9.76” (248 mm) |
| Approx Weight: | 6.35 kg |
