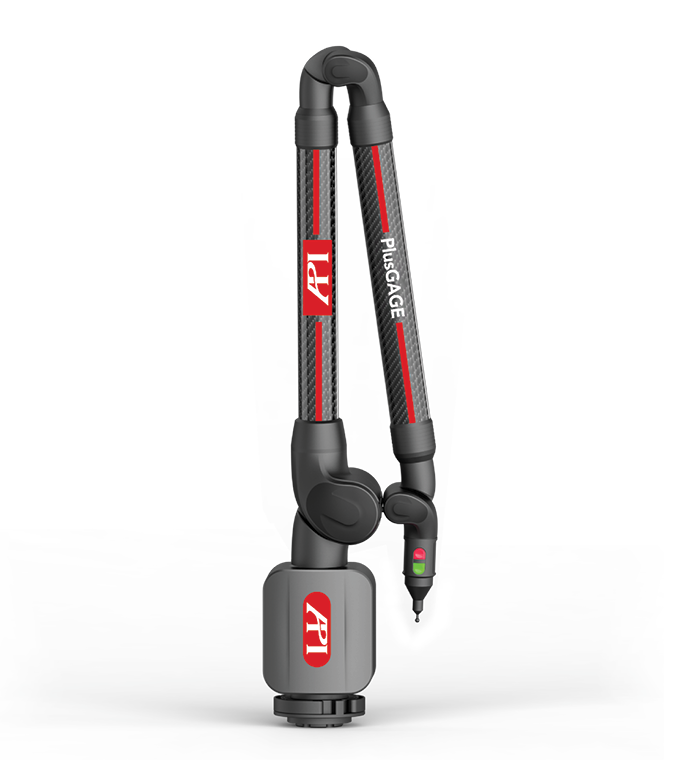

API PlusGAGE Portable CMM Arm
- Model
- PlusGAGE
- Category
- Portable measuring arms
- Solutions
- Industrial Metrology and Quality Inspection
Portable scanning and inspection arm for contact measurement and dense surface data capture. PlusGAGE supports shop-floor quality inspection, with Wi-Fi transfer of scan data for reporting and analysis.
Overview
Portable scanning and inspection arm for contact measurement and dense surface data capture. PlusGAGE supports shop-floor quality inspection, with Wi-Fi transfer of scan data for reporting and analysis.
Applications: Large-volume dimensional inspection · Machine tool and robot calibration · Reverse engineering · Internal defect inspection with CT · Small-part optical measurement
Key capabilities
- Contact measurement and scanning
- Wi-Fi scan-data transfer
- Part inspection
- Reverse engineering
Technical specifications
| System type | Portable articulated CMM arm |
|---|---|
| Measurement | Contact probing and scanning |
| Construction / connectivity | Wi-Fi scan-data transmission |
Configurations & accessories
- Arm size and accessories selected to application
- See model brochure for configuration-specific accuracy
Downloads
Solutions
Industrial Metrology and Quality Inspection
Laser trackers, measuring arms, laser radar, X-ray CT and optical measuring for manufacturing quality.
Related products
API ProGAGE Portable CMM Arm
Portable articulated measuring arm for contact inspection and laser scanning. ProGAGE supports part verification, tooling inspection and reverse engineering, with multiple arm leng

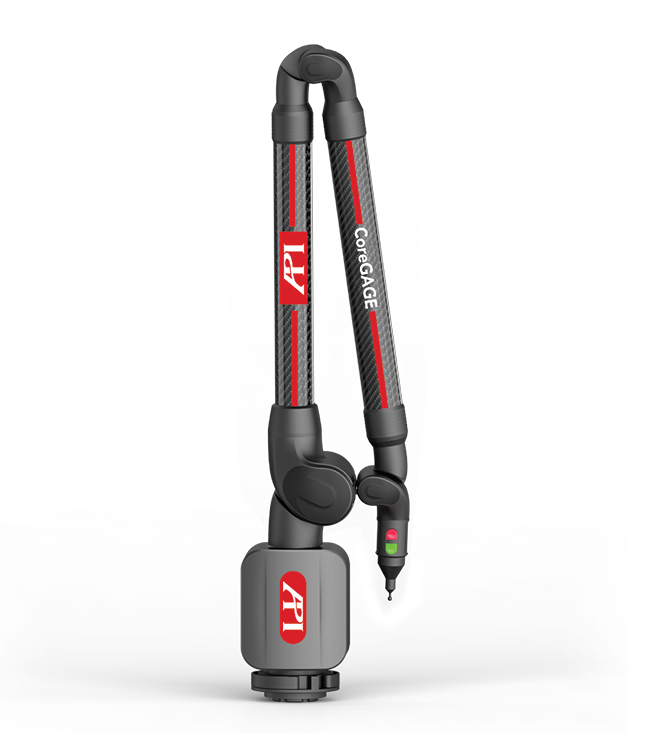

API CoreGAGE Portable CMM Arm
